#SMI-MAP4B

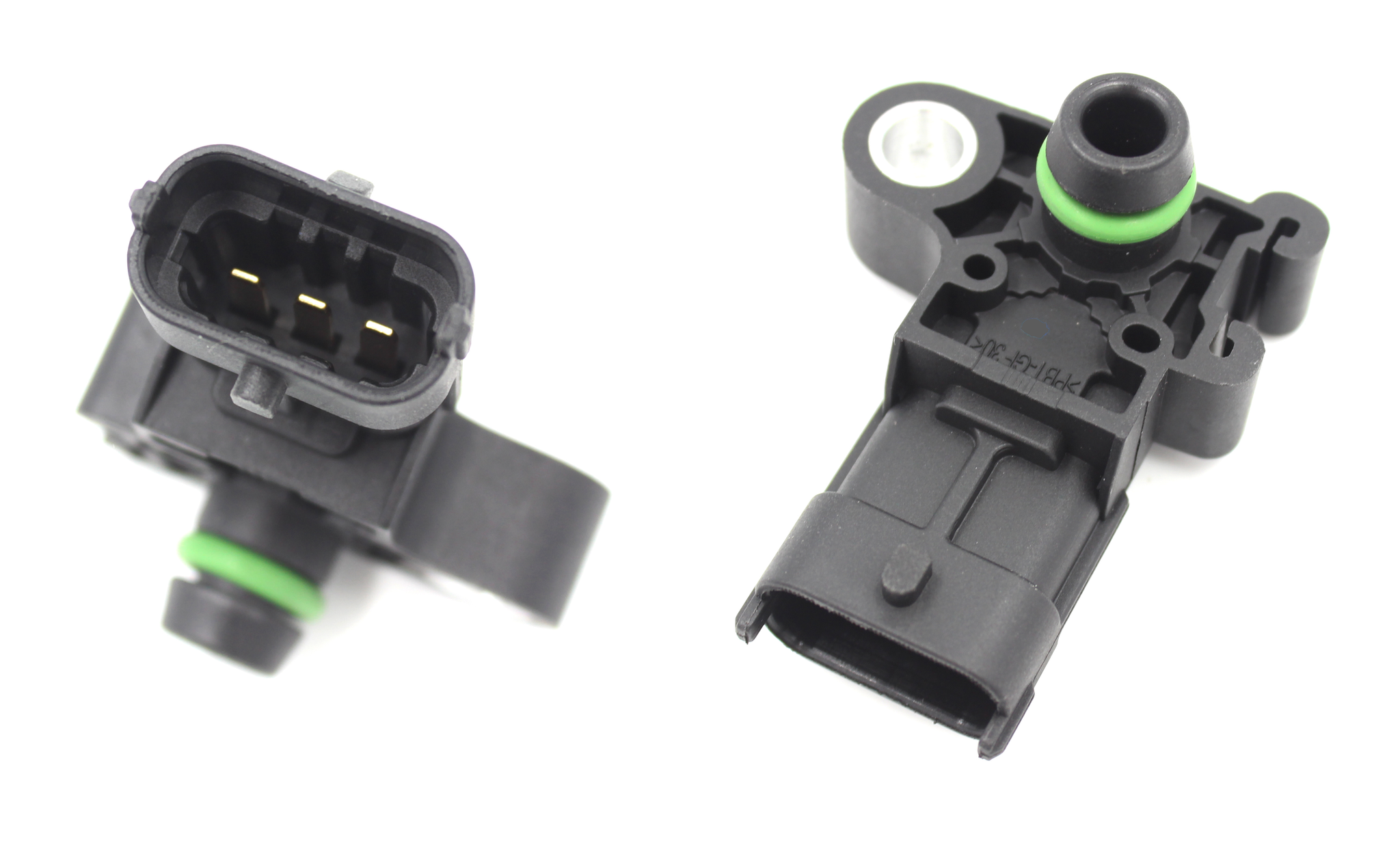

4 BAR MAP sensor for GEN 4 LS Style Intakes LS3 LS9 LSA L76 L98 L77 LY6 L96 LC9. This sensor is considered the "bolt-in" style and fits most all Gen 4 LS platforms and many many other setups. All Holley intake manifolds utilize this style of sensor.

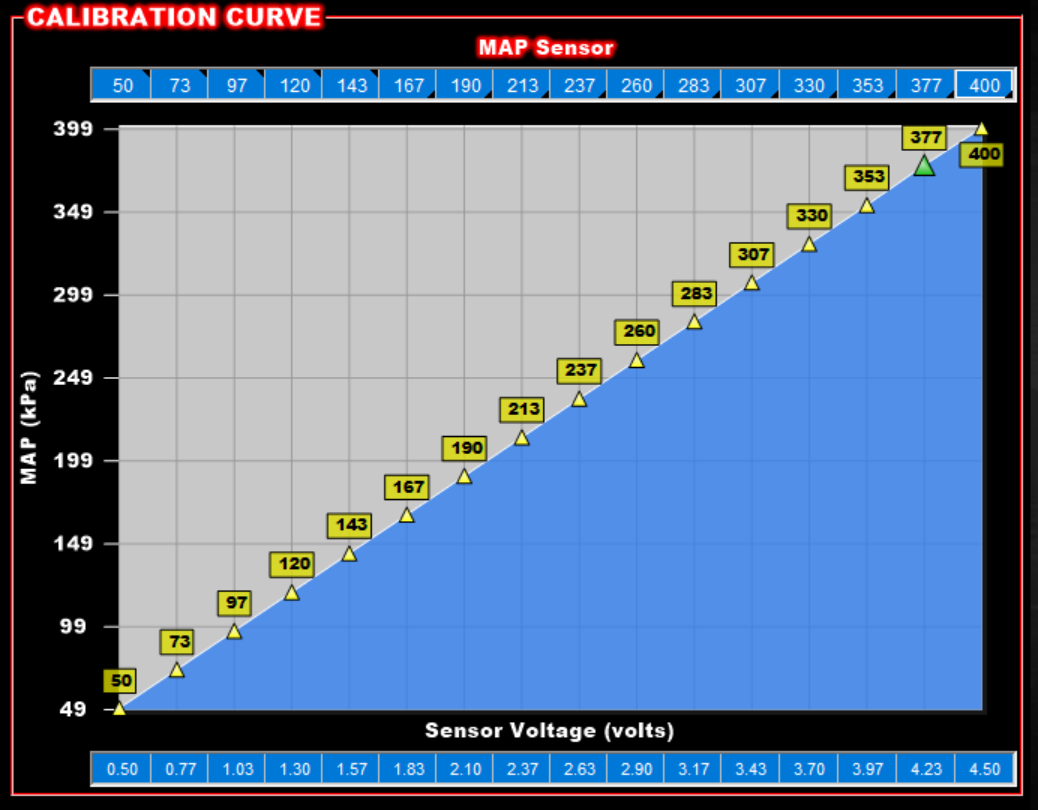

50-400 KPA. This sensor reads up to 44 lbs of boost!!

Compatible with Holley Terminator X, Terminator X Max, HP, and Dominator, as well as many other aftermarket and stock EFI Systems.

These sensors are electrically potted for EXTREMELY HARSH CONDITIONS. That means they are filled with a special electronic epoxy that encases all the components of the internal circuitry. This sensor is 100% Guaranteed not to leak, or blow apart in any situation. It takes a pretty hard hit with a hammer to damage these sensors. Trust me, we put them through some rigorous testing!

This sensor is designed for the Gen 4 LS style intakes. It will NOT work on Gen 3 style OE intakes. The barb is physically larger and will NOT fit intakes designed for the non-bolt-in style MAP sensor. The 3 BAR MAP sensors for the early truck style intakes can be found here and the 3 BAR MAP sensors for the early car style intakes can be found here!!

Tick Performance TPMAP4B

Parts sourced to make these sensors are from:

1. California, USA
2. Ontario, CANADA
3. Virginia, USA
4. Wenzhou, CHINA
